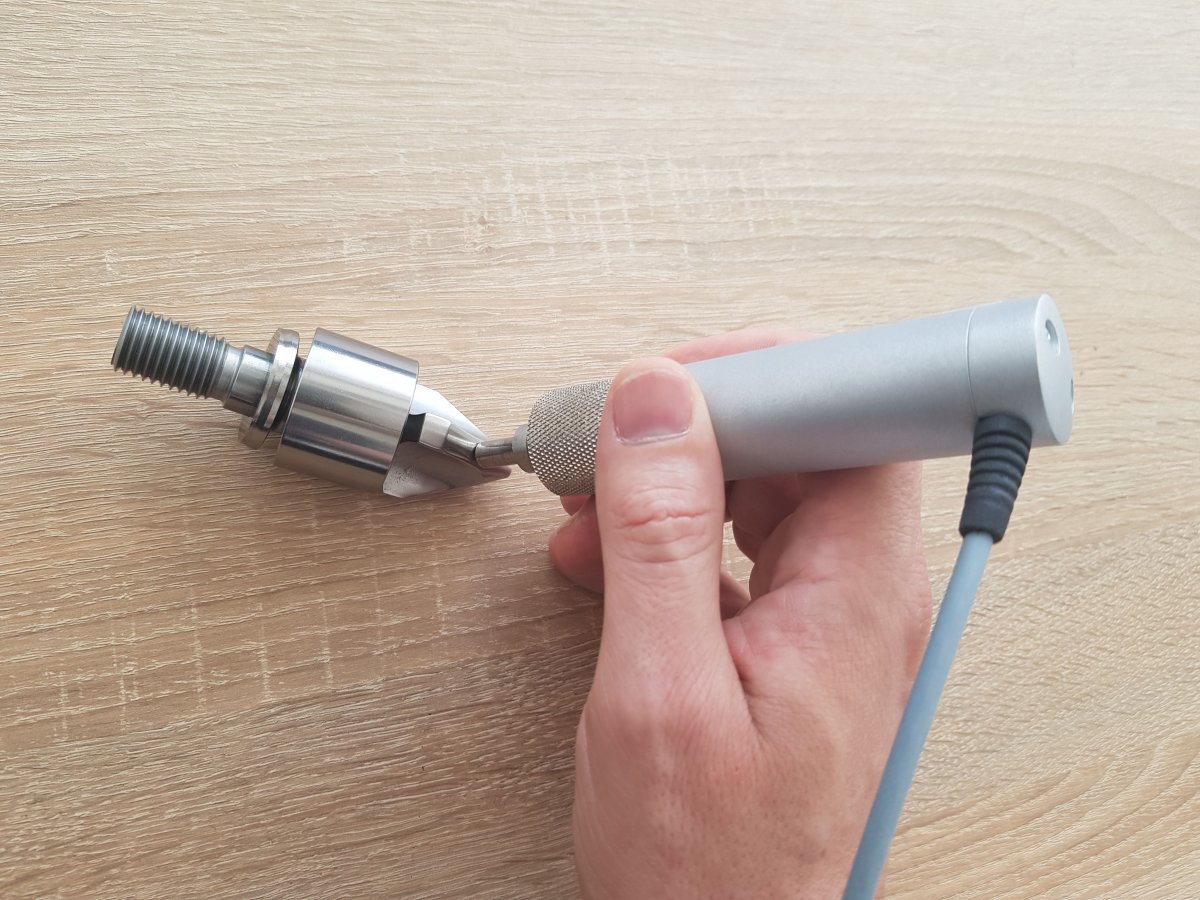

Surface hardness measurement

Measurement of surface hardness by ultrasonic or dynamic method.

Scale: HRC, HB, HV, HUMP, HS, HL, MPa

Measuring range: HRC 20÷70, HV 230÷940, HB 90÷650, MPa 370÷1740

Ultrasonic probe load: 10N

Measurement accuracy: HV ±3%HV; HRC ±1.5%HRC; HB ±3%HB

Use for: Ultrasonic (UCI) probe – pre-calibrated for steel.

               Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper.

               Additional optional calibration materials.
